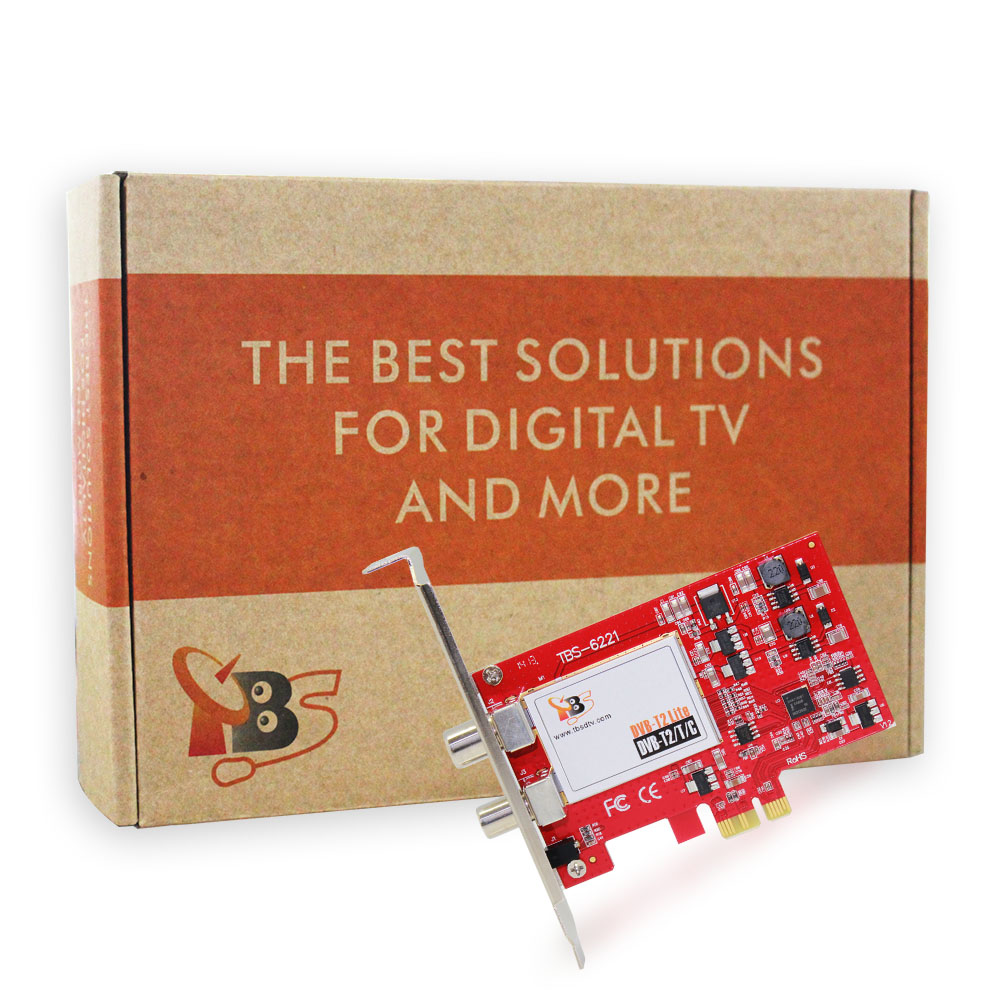

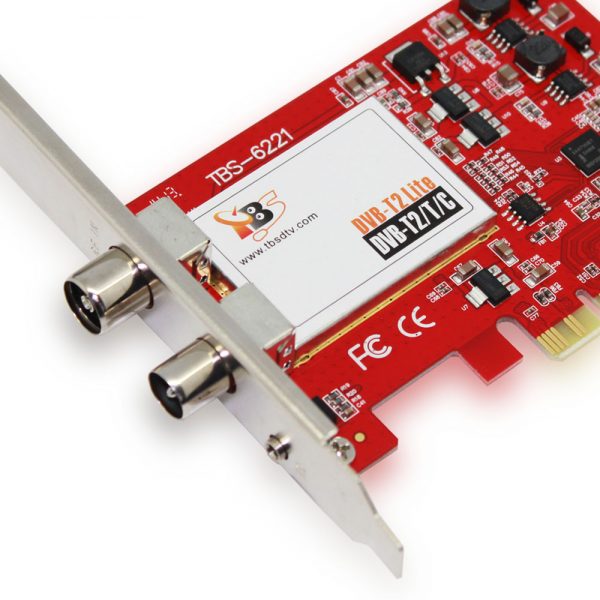

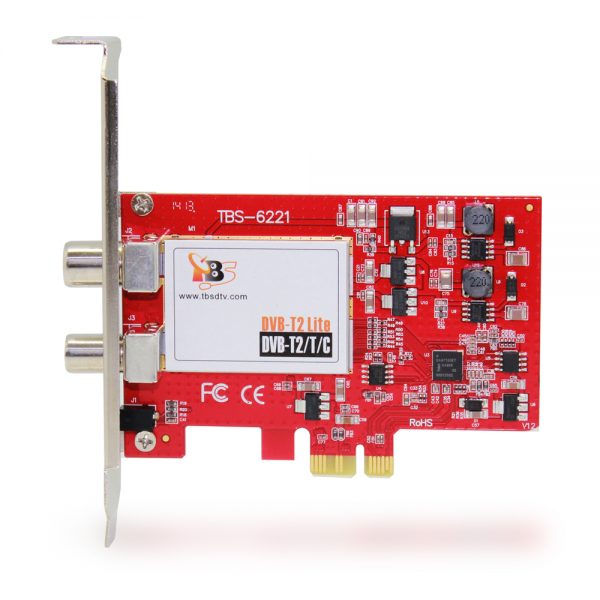

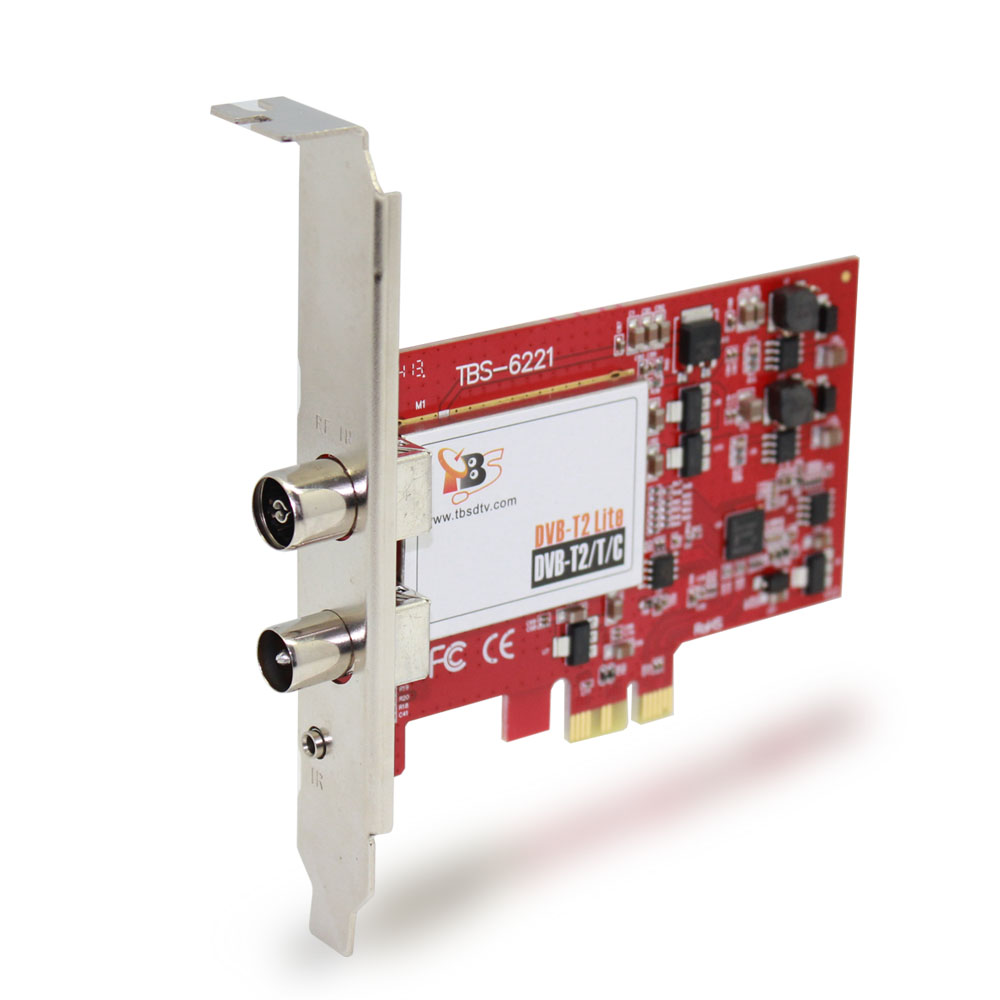

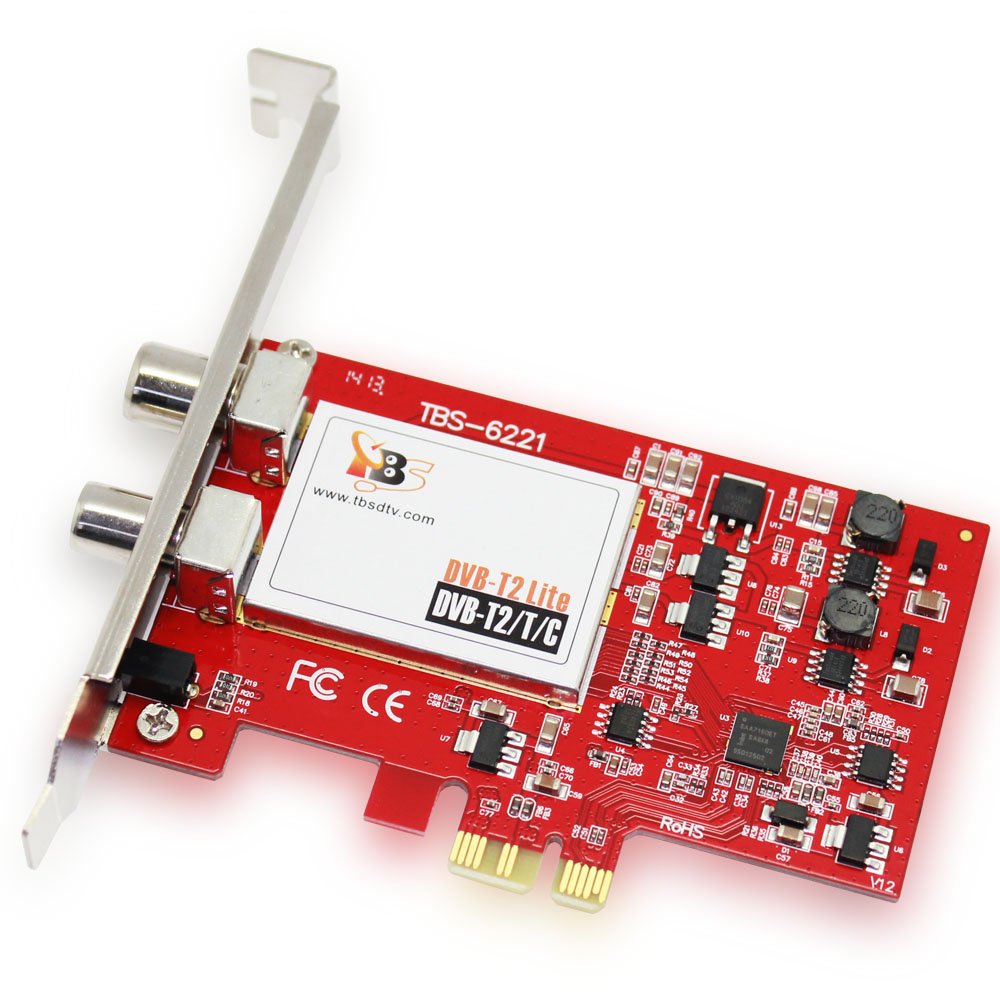

TBS6221 DVB-T2/T/C Terrestrial & Cable TV Tuner PCIe Card

Special Order – Contact Us for info

SKU: TBS6221 Categories: ,


TBS6221 DVB-T2/T/C TV Tuner can be used as a digital video recorder for recording digital terrestrial/cable TV programs with full HDTV support. It also enables you to pause a live broadcast and continue from where you left with the Time-shifting function. This DVB T2/T/C PC TV card is ready with windows BDA driver and Linux driver. It’s ideal for watching UK Freeview

Main Features:

  • Watch free-to-air digital terrestrial TV on PC
  • DVB-T2, DVB-T and DVB-C are supported Low profile size
  • High-definition video, real-time and scheduled video recording
  • High sensitivity tuner for the best digital TV reception

• DVB-T2/T2 Lite (V1.3.1)/T
DVB-T2/T Receiving Channel: VHF band and UHF band
Channel Bandwidth: 6, 7, 8 MHz
DVB-T2/ T modulation type: QPSK, 16QAM, 64QAM, 256QAM
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8
Guard interval: 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 19/128, 19/256
Intermediate frequency:
IF mode: Low IF
Center IF Frequency: 3 ~ 5 MHz
Note: default 4MHz

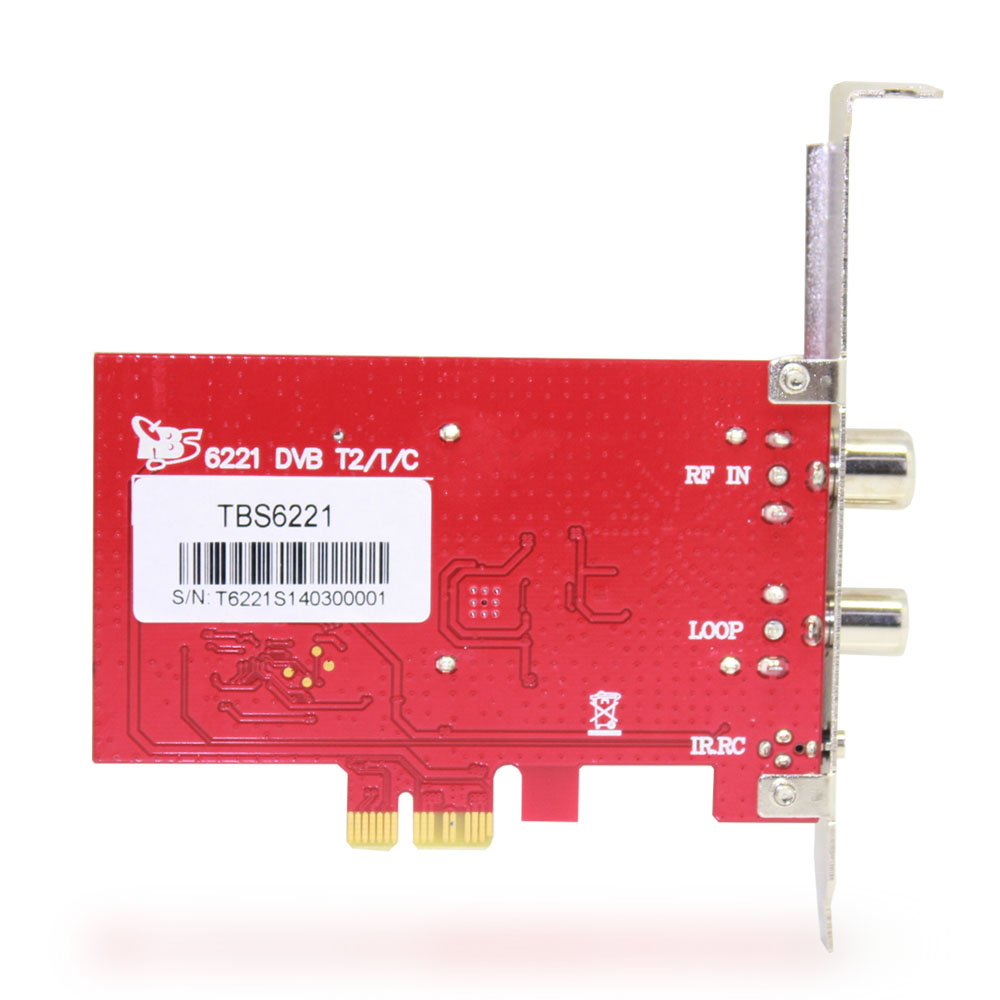

RF-Input Impedance 75Ω (IEC-DIN female)
RF-Output Impedance 75Ω (IEC-DIN male)
Fully compliant with DVB-C and ITU J83 A/B/C specifications
Receiving Frequency: 47~862 MHz tuning range
Input level: -65~-10dBm
16QAM, 32QAM, 64QAM, 128QAM and 256QAM support
Symbol Rate: 0.87 to 9Mbaud

System Requirements:
Windows XP / Vista/ 7/8/10, Linux
Pentium 4 2.0 GHz, Pentium M 1.3 GHz
For HDTV: 2.6 GHz multi core processor
Hard disk with min. 1 GB free capacity
Sound and graphics card with support for DirectX 9 or higher
Available PCI Express x1, x4, x8 or x16 slot*
CD/DVD drive for software installation

Package Contents:
1 x TBS6221
1 x IR receiver
1 x remote control
1 x Low profile bracket
1 x Aerial
1 x Software CD
