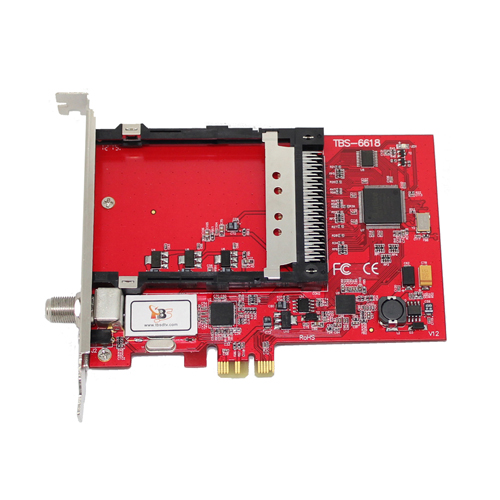

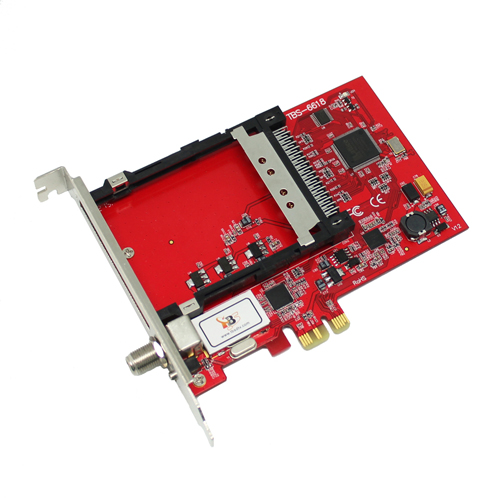

TBS6618 DVB-C TV Tuner CI PCIe Card- PC Cards for Cable PayTV


Special Order – Contact Us for info

SKU: TBS6618 Category:


TBS6618 is a PCIe interface digital cable TV Tuner internal card for watching and recording digital cable TV on PC. With integrated CI slot, it can be used for watching clear QAM or encrypted Pay TV(By inserting the correct CAM and subscription smartcard into the CI slot, encrypted pay TV will be available). Windows BDA driver is provided and Linux driver is also available now. The unique TBS MCE tool makes it possible to read CAM/Smartcard on Windows7 Media Center, thus your subscription cable TV can be watched/recorded on Windows7 Media Center.

Main Features:
Watch Cable TV & listen to Radio on PC
DVB-C SD or HD TV Receiving
Real Time and Scheduled Program Recording(PVR)
Time Shifting to Pause Live TV
Common Interface Support

Fully compliant with DVB-C and ITU J83 A/C Specifications
Receiving Frequency: 47~862 MHz Tuning Range
Input level: -65~-10dBm
16QAM, 32QAM, 64QAM, 128QAM and 256QAM Support
Symbol Rate: 0.87 to 9Mbaud
Single CI Slot
Standard Profile TV Card Size: 130x83mm (Length x Height)
TV Card Weight: 80 Gram
Package Gift Box Size: 205x140x50mm (Length x Width x Height)
Package Gift Box Weight:

System Requirements:
Windows 2000/XP/Vista/7/8/10 or Linux
DirectX9.0 or later Version
Available PCI Express x1,x4, x8 or x16 slot
Cable TV connection

Dualcore CPU
1GB RAM or Above
Graphic Card with at Least 64MB RAM

Package Content:
1 x TBS6618 PCIe DVB-C TV Tuner CI Card
1 x remote control
1 x IR receiver
1 x F connector
1 x Software CD
