Description

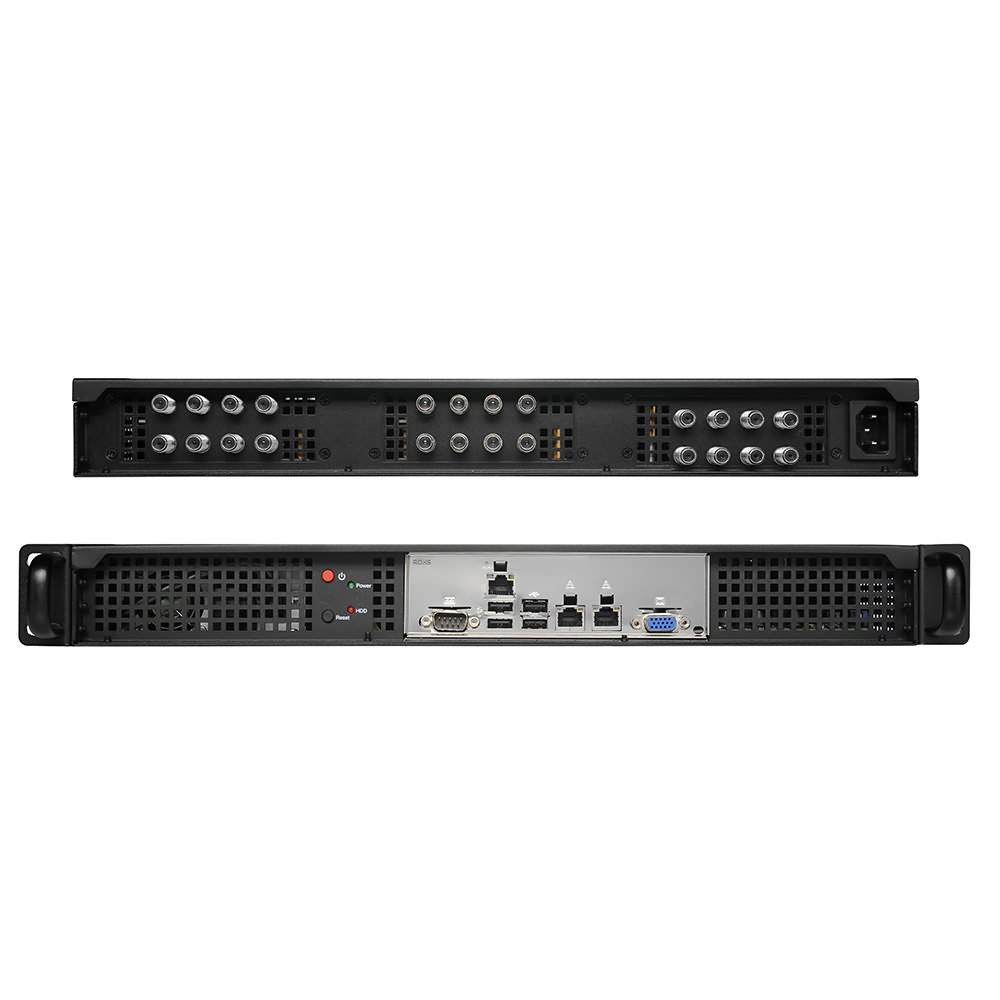

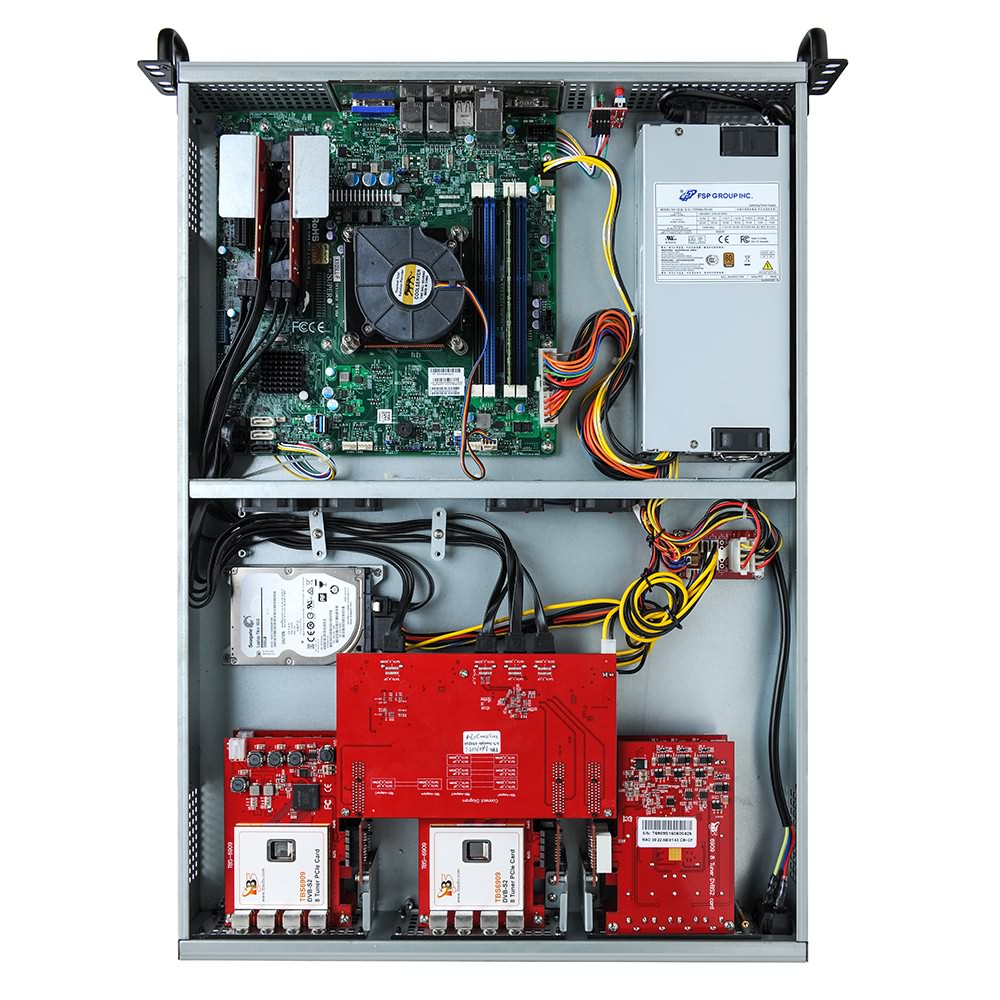

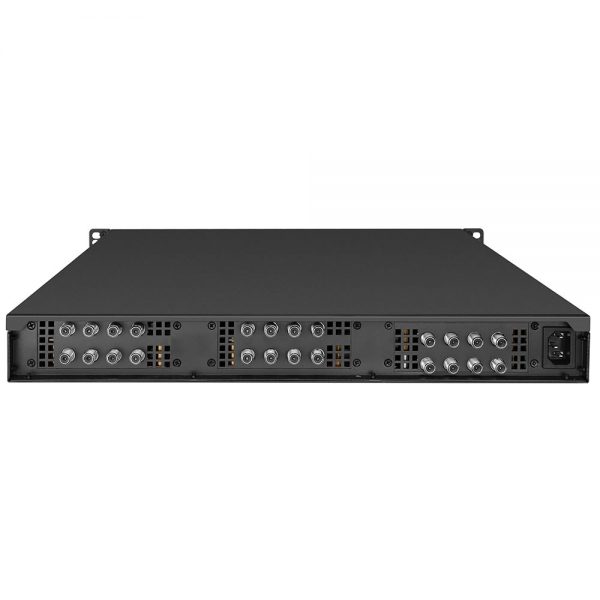

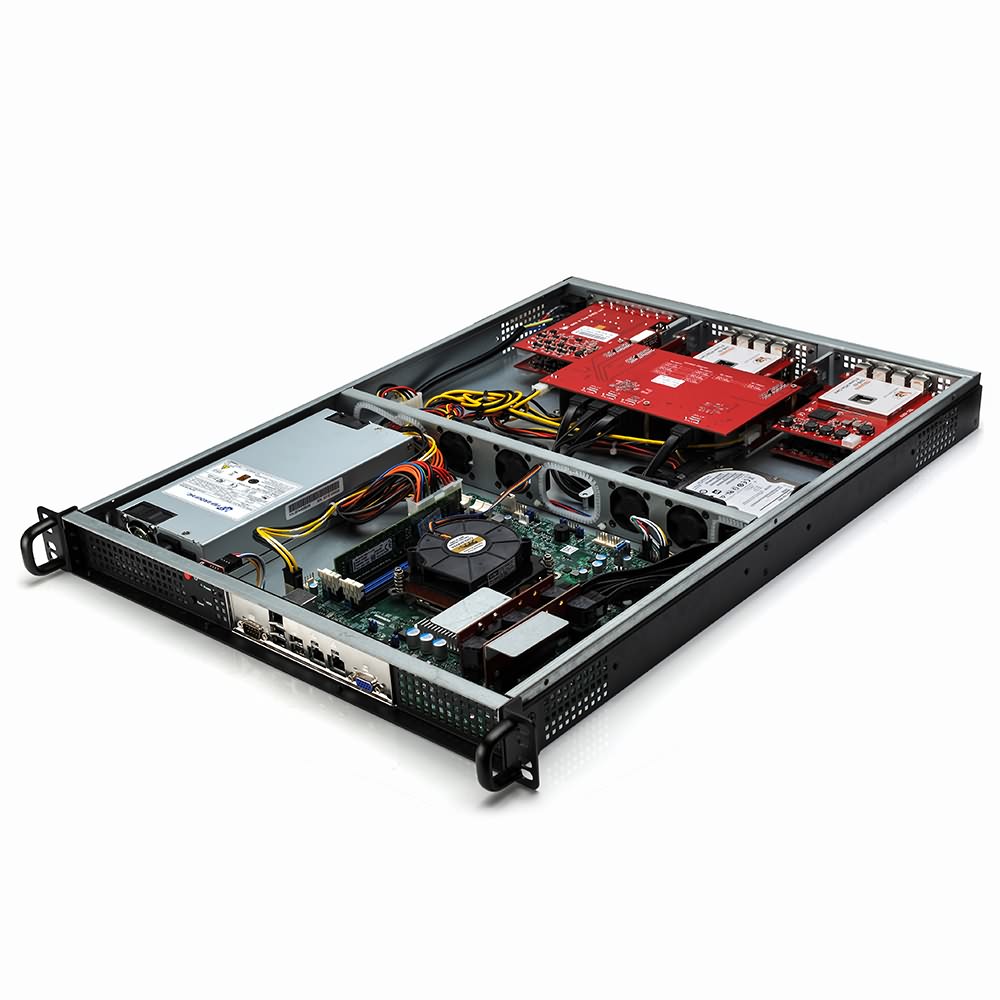

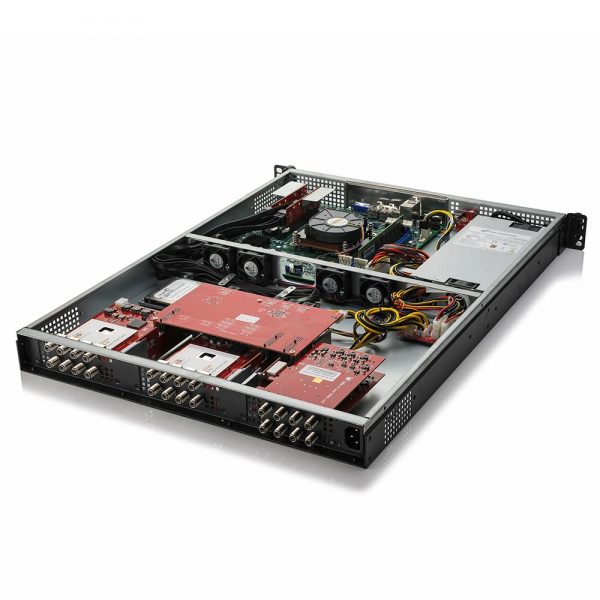

MOI-V is TBS latest professional IPTV streaming server, with flexible x86 CPU(Upto Intel E5 Xeon) and Memory, it support up to 48 TV tuners of different DVB standard in 1U chassis. It can receive live TV signal using built-in TV tuners and stream the channels to your IPTV panel.
This version is pre-fitted with motherboard memory & storage please call for further details
Specifications:
| Size | 1U Chassis |
| Processor | Intel® Xeon® processor E3-1200 v3/v4 and 4th Gen Core i3, Pentium, Celeron processors |
| Memory |
|
| Ethernet |
|
| Serial ATA | 2x SATA 3.0 (6Gb/s), 4x SATA 2.0(3Gb/s) |
| SSD | 60G SSD |
| Serial Port/Header | 2x COM ports (1 rear, 1 header) |
| FRONT PANEL | Power on |
| Reset | |
| Power LED | |
| HDD LED | |
| Display Interface | 1x VGA D-Sub Connector |
| USB | 2x USB 3.0 ports |
| 6x USB 2.0 ports | |
| PCI-E slot | 6x PCIE1X/ 4x PCIE1X &1x PCIE4X |
| SBC dimension | 9.6″ x 9.6″, (24.4cm x 24.4 cm) |
| Operating Systems | Microsoft® Windows 8, Microsoft® Windows 7, |
| Microsoft® Windows® 7/8 embedded Standard, Microsoft® Windows® 7 Embedded Compact | |
| Linux, Ubuntu, | |
| DVB tuner card support | Up to 48 TV tuners (6 TV tuner PCIe cards) |
| Pre-installed software | Tvheadend, VDR, MuMuDVB, DVBlast, szap-s2, dvbdate, dvbscan, dvbdstream, dvbsnoop, scan-s2, szap-s2, tzap-t2, LIRC, telnet, ssh, ftp, samba |
