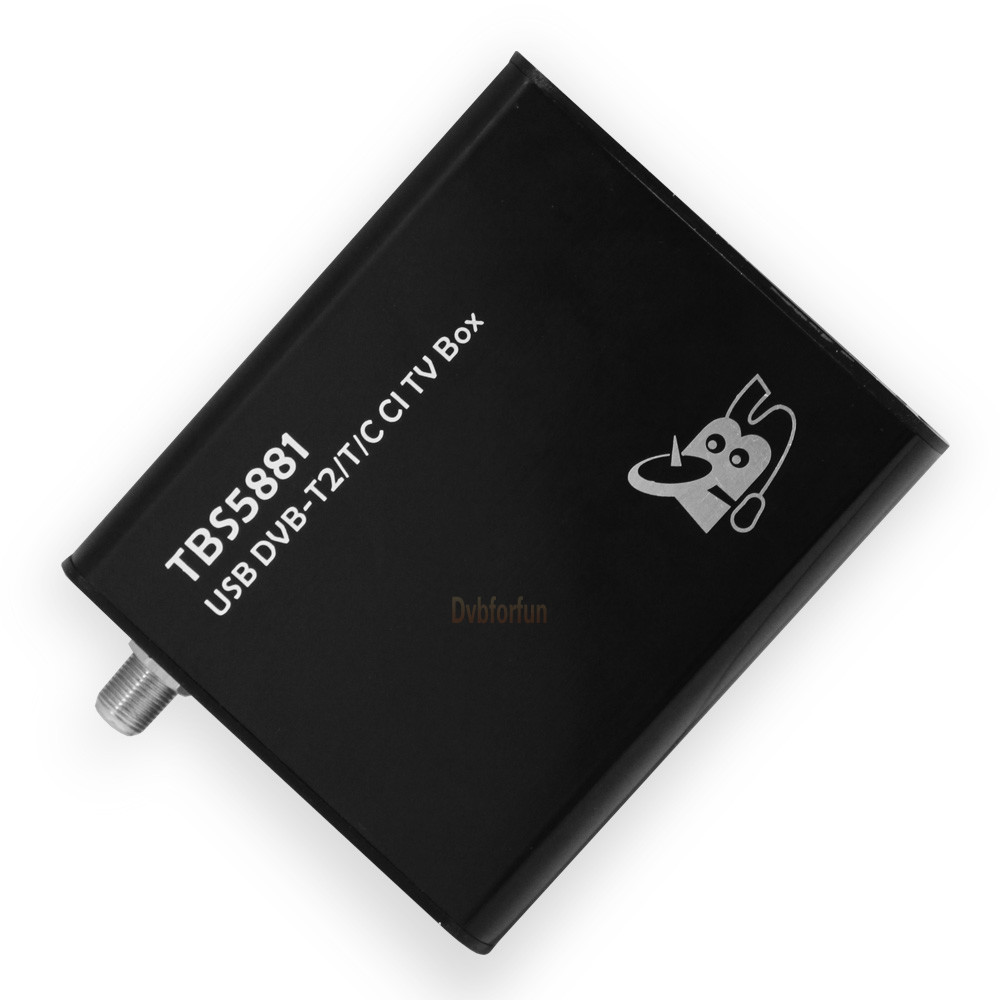

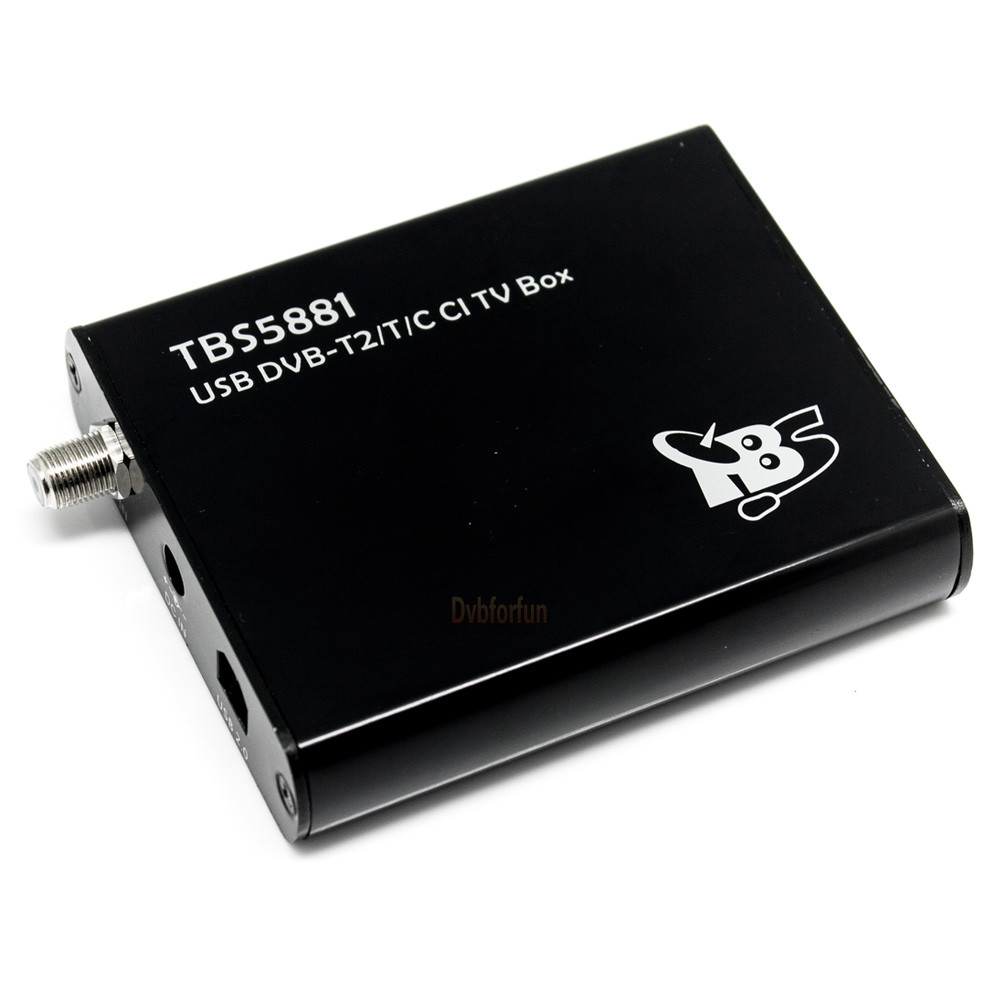

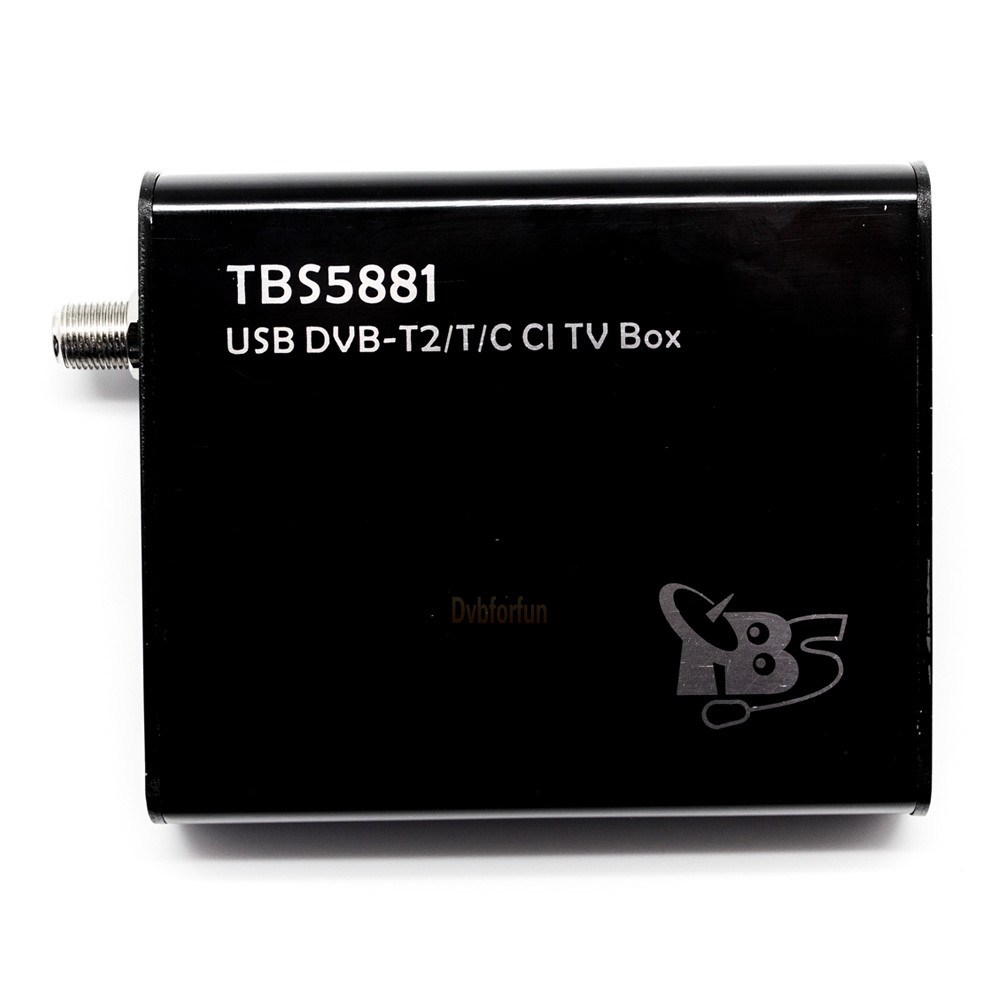

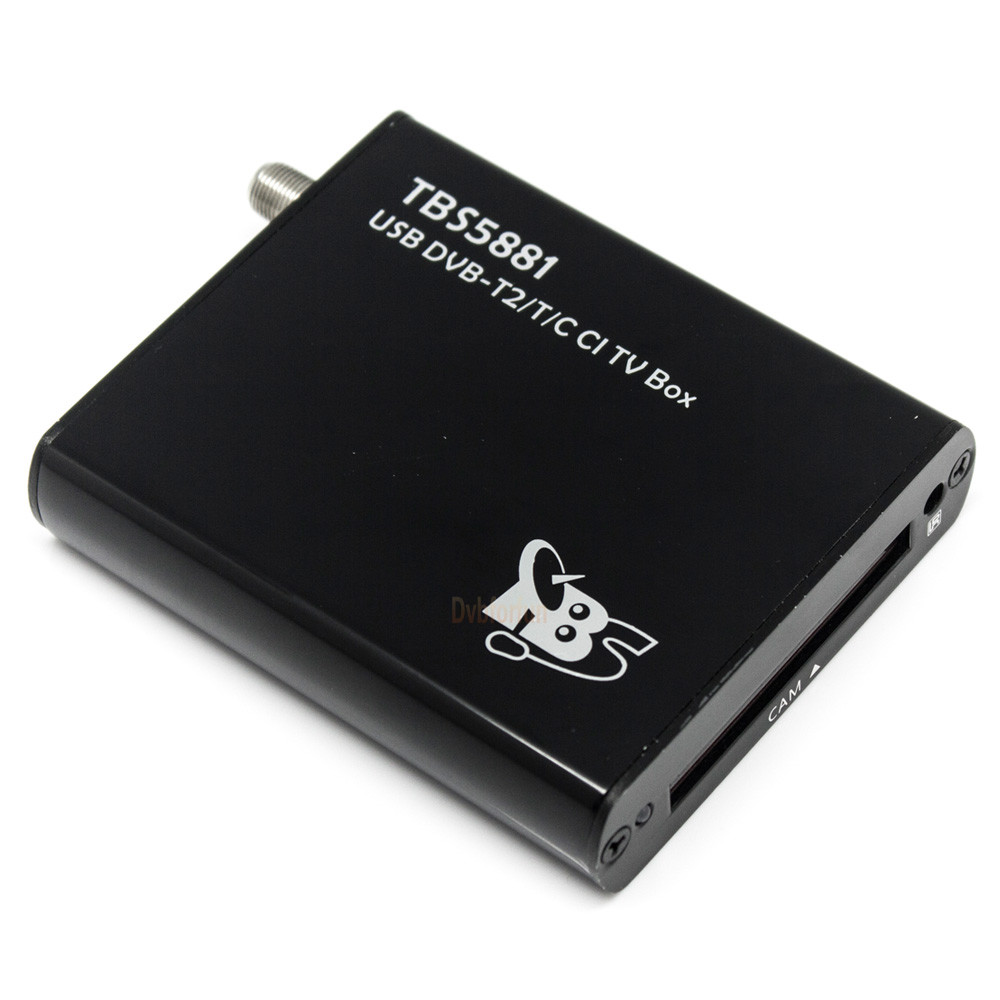

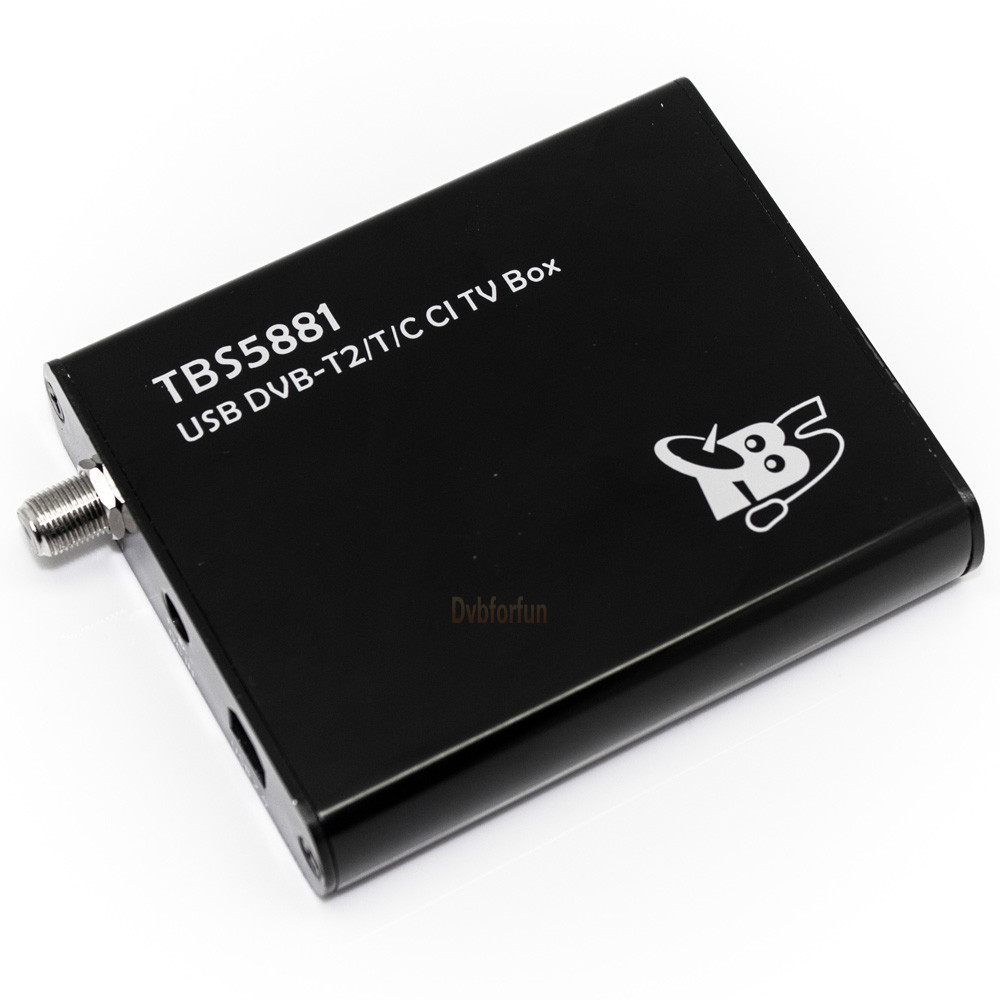

TBS5881 DVB-T2/T/C Terrestrial & Cable Hybrid TV Tuner CI USB box

Special Order – Contact Us for info

SKU: TBS5881 Category:


TBS5881 USB DVB-T2/T/C TV Box CI is a hybrid TV tuner box built with Common Interface support, which allows you to watch and recode Free to Air/Clear TV programmers also can watch and recode encrypt programmers via insert correct CAM and smartcard in its CI slot. There are one DVB-T2/T TV tuner and the other DVB-C TV tuner for you to choose between digital Terrestrial TV Channel and digital Cable TV Channel. The appropriate software to be provided such as: MediaPortal and its plugins, you may stream terrestrial and cable TV contents to your iPhone, iPad or iPod.

Main Features:
Watch digital TV & listen to radio on PC
Recode digital TV programmers on PC

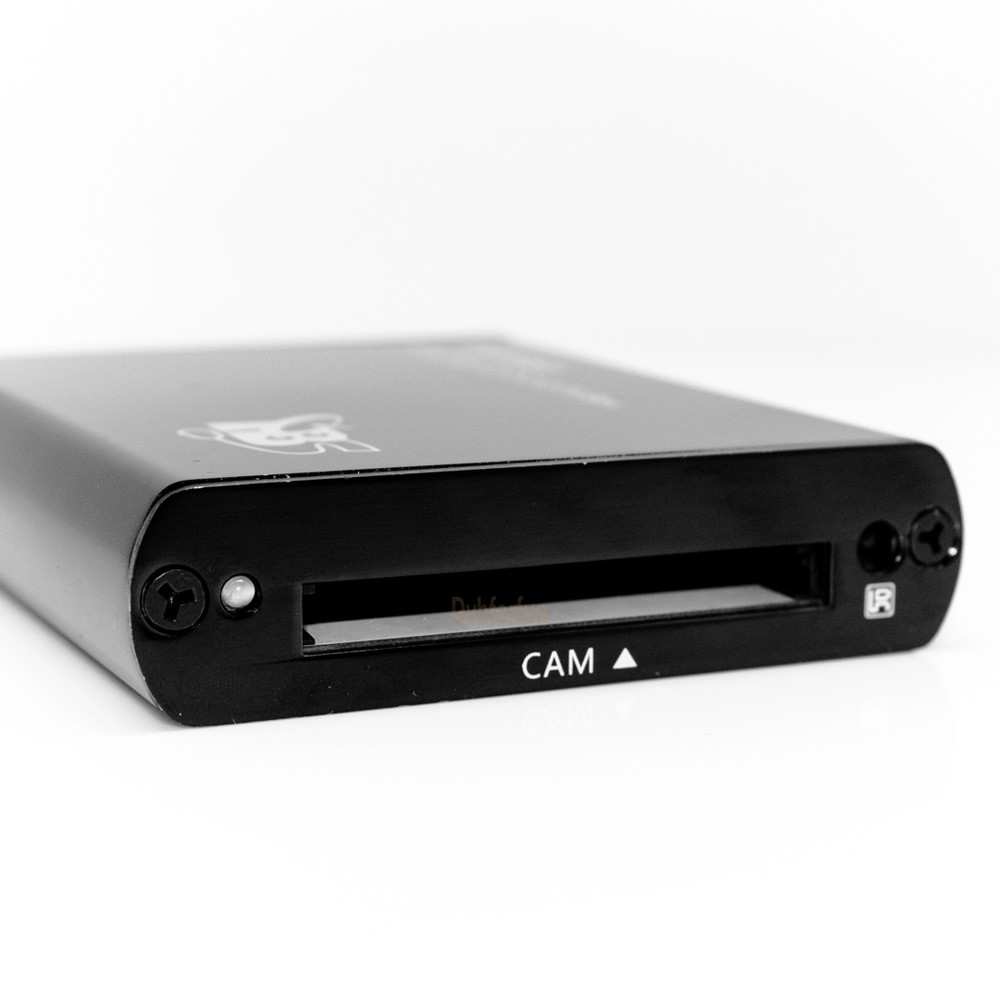

CI slot for insert CAM and smart card to decrypt the encrypted Pay TV
Connect with USB
DVB-T2/T/C SD or HD TV receiving
Real time and scheduled program recording (PVR)
Time shifting to pause live TV
Common Interface (CI) Support

For DVB-T2/T
● Receiving channel: VHF band and UHF band
● Channel bandwidth: 6, 7, 8 MHz
● DVB-T2/ T modulation type: QPSK, 16QAM, 64QAM, 256QAM
● FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
● Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8
● Guard interval:1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 19/128,19/256
● Intermediate frequency
● IF mode: low IF
● Center IF frequency: 3 ~ 5 MHz
● Note: default 4MHz

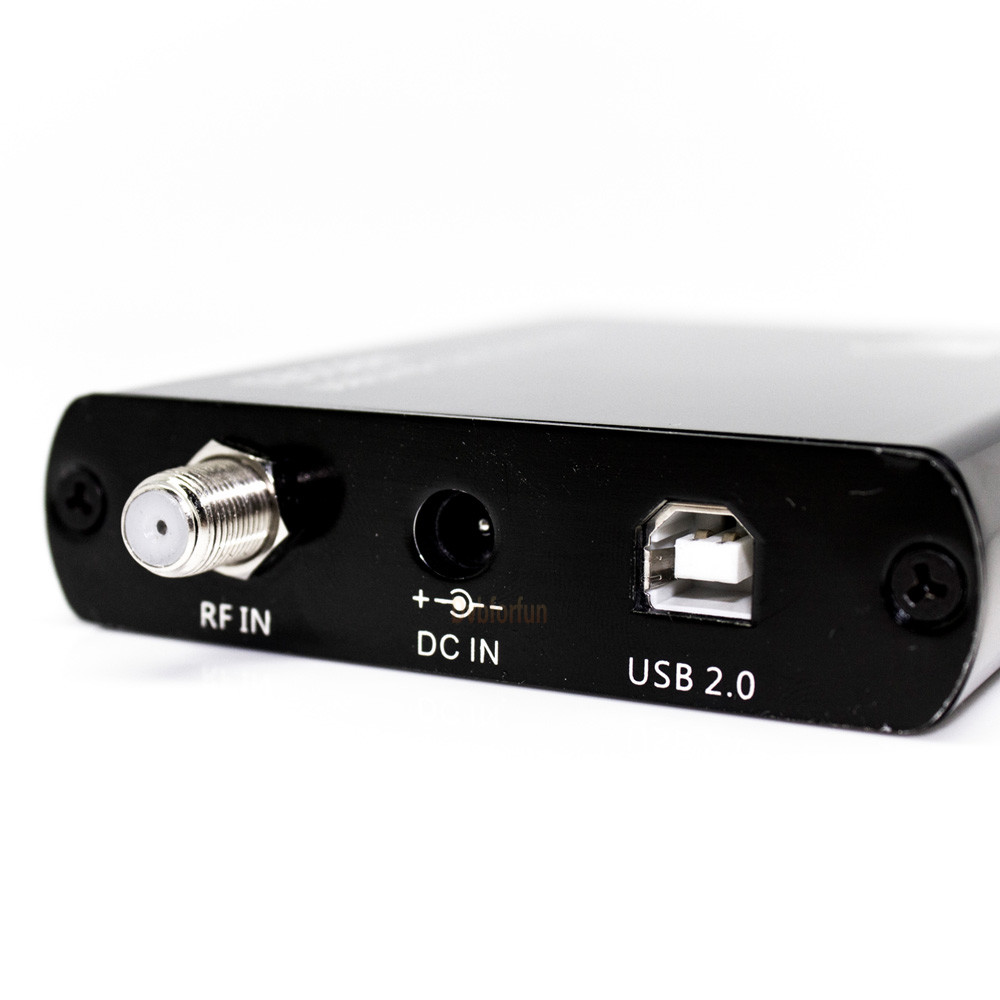

● RF-input impedance 75Ω (IEC-DIN female)
● RF-output impedance 75Ω (IEC-DIN male)
● Single CI

● Fully compliant with DVB-C and ITU J83 A/C specifications
● Receiving frequency: 47~862 MHz tuning range
● Input level: -65~-10dBm
● 16QAM, 32QAM, 64QAM, 128QAM and 256QAM support
● Symbol Rate: 0.87 to 9Mbaud
● Single CI

System Requirements:
● Windows 2000/XP/Vista/7/8/10 or Linux
● DirectX9.0 or later version
● Available USB port
● Dualcore CPU
● 1GB RAM or above
● Graphic card with at least 64MB RAM

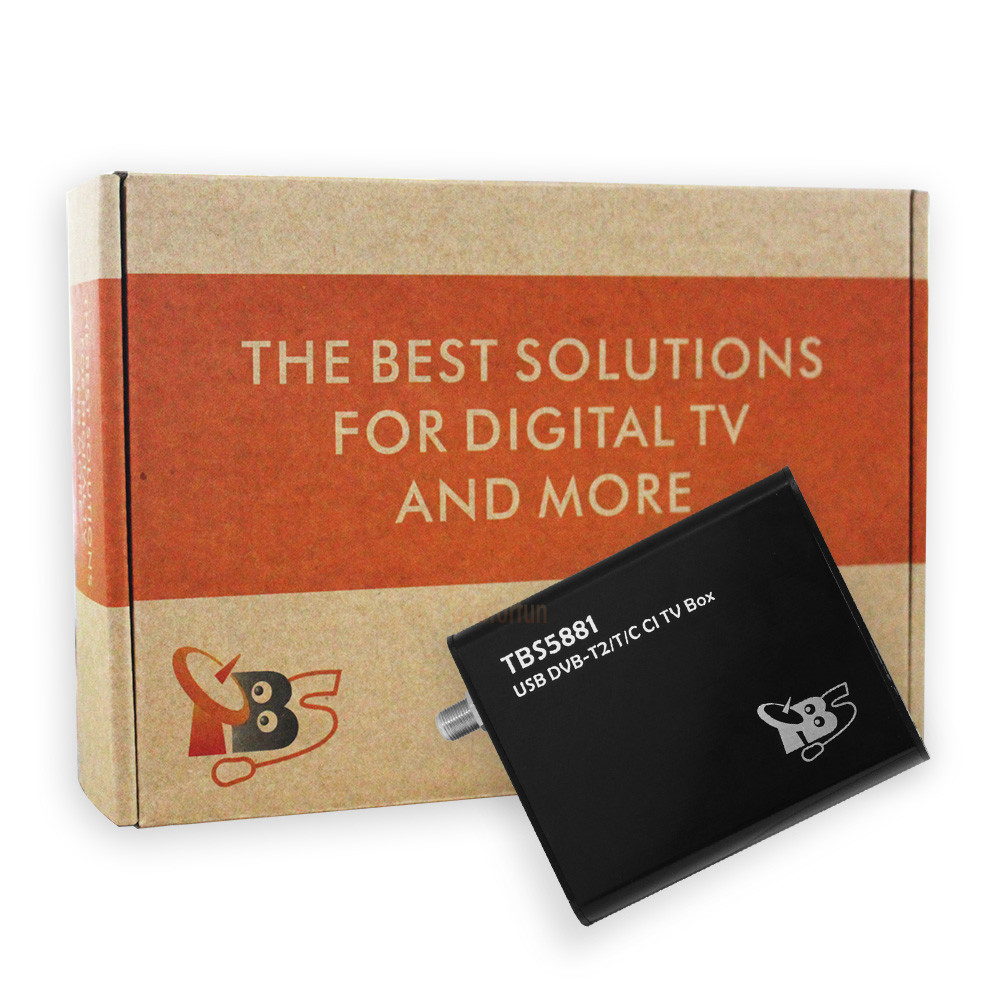

Package Contents:
1x TBS5881
1x Power adapter
1x USB cable
1x Remote control
1x AC line
