Description

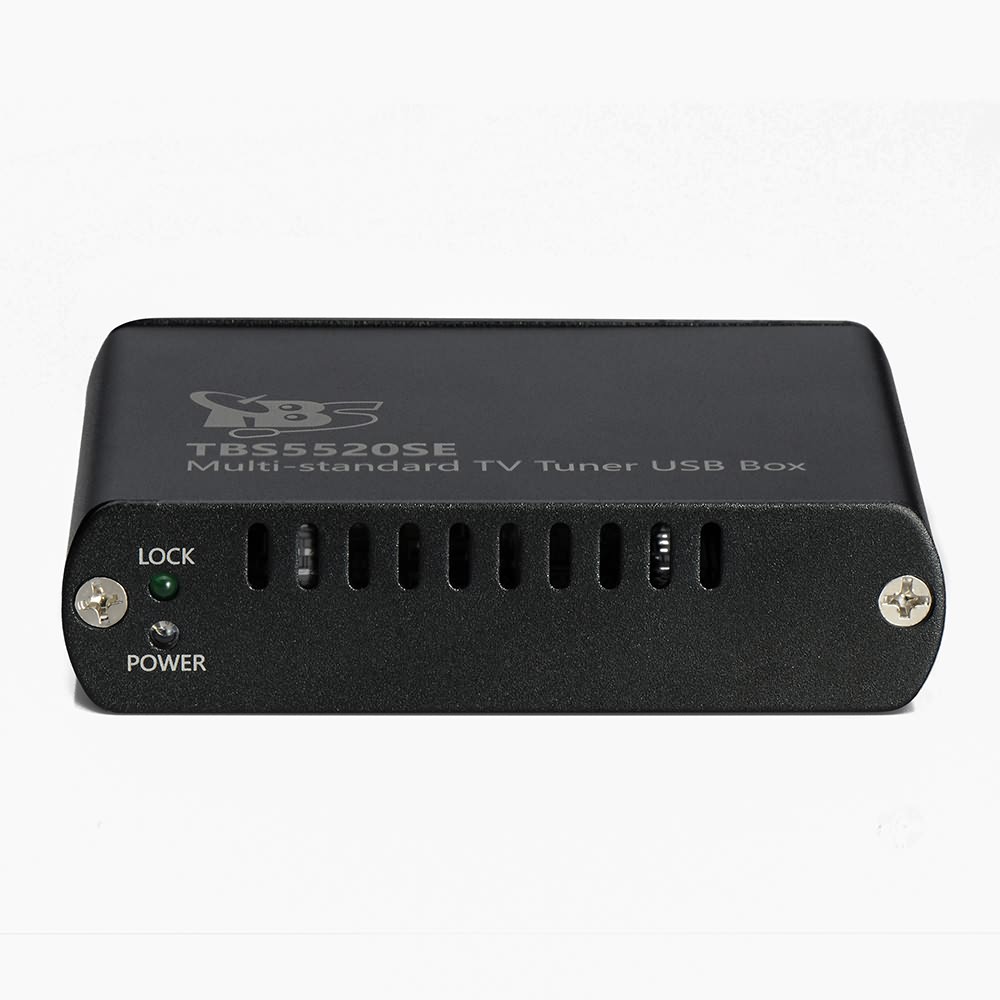

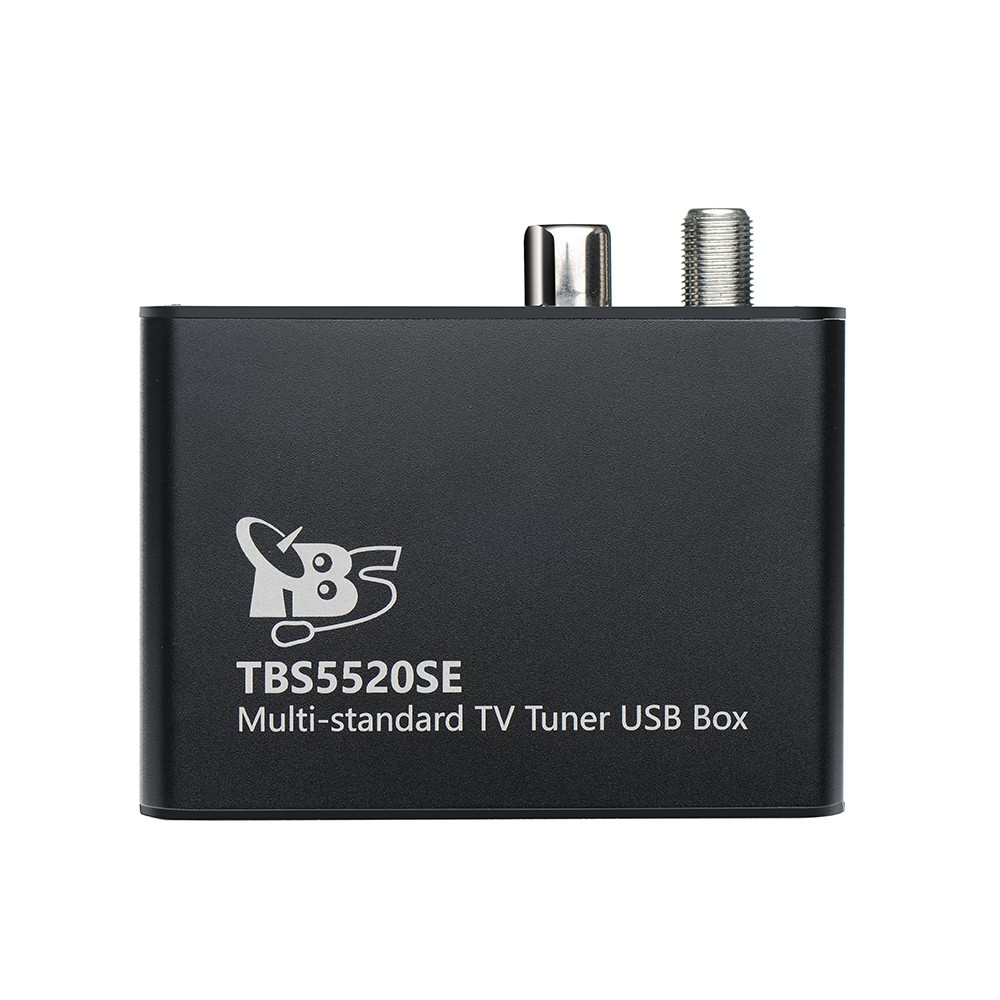

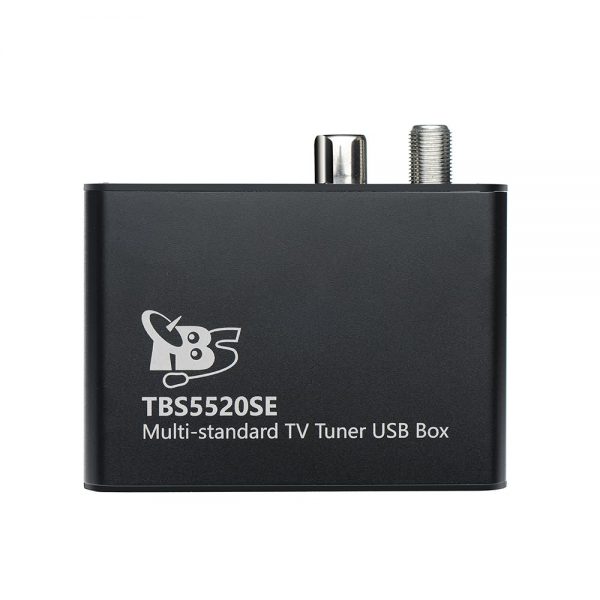

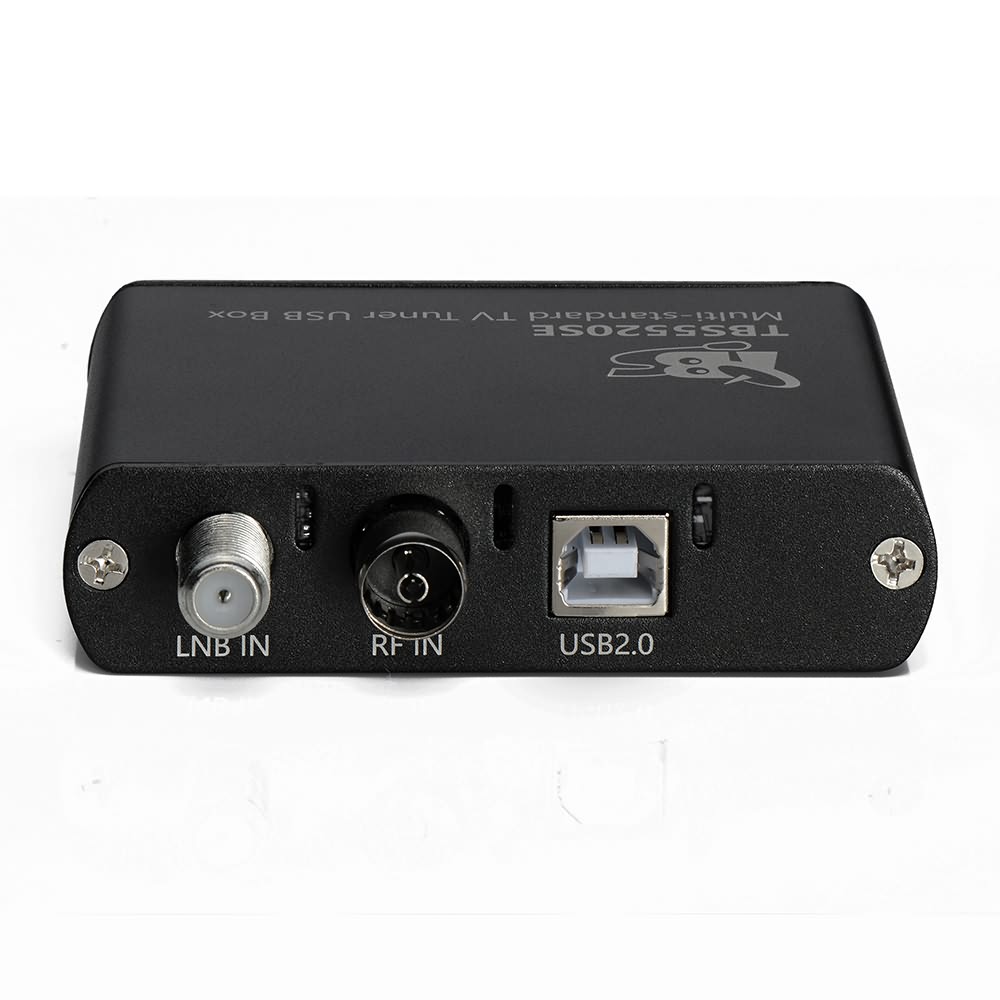

TBS5520SE is a multi-standard external TV tuner with USB2.0 interface, it is capable of receiving digital TV channels of multiple standards: DVB-S2X/S2/S/T2/T/C2/C/ISDB-T. Through the USB interface, you can easily plug the TBS5520SE Universal TV Tuner to your desktop or laptop PC, with appropriate signal cable connected and software installed, it’s convenient to switch among different standards, and enjoy more TV channels than using just one single TV standard.
Main Features:
Multi-standard dual USB box
Watch & record satellite TV/ radio programs on PC
EPG (Electronic Program Guide) support
Unicable/one cable compatible
Applications:
Data receiving
IPTV streaming
Media monitoring
Digital content distribution
Specifications:
| ISDB-T | COFDM demodulator and FEC decoding |
| Support 3 layers decoding | |
| TMCC decoding | |
| Support differential demodulation | |
| AC1 and AC2 decoding | |
| DVB-T2 and T2-Lite | Receiving channel: VHF band, UHF band |
| Bandwidth: 1.7, 5, 6, 7, 8MHz | |
| FEC: QPSK, 16QAM, 64QAM,256QAM | |
| FFT mode: 1K, 2K, 4K, 8K, 16K, 32K | |
| Code rate: 1/2, 2/3, 3/4, 5/6, 7/8 | |
| DVB-C2 | COFDM demodulator(16_QAM to 4096_QAM) |
| FEC(LDPC/BCH) decoder | |
| Bandwidth: 6MHz, 7MHz, 8MHz | |
| DVB-C and ITU-T J.83 Annex B | QAM demodulator |
| FEC decoder | |
| 1 to 7.2MSymbol/s | |
| DVB-S/S2/S2X | symbol rates: 1-45Msps |
| FEC:
DVB-S/S2 QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 DVB-S2X QPSK: 13/45, 9/20, 11/20 2_4_2_APSK: 100/180, 104/180 8PSK: 23/36, 25/36, 13/18 8_8_APSK: 90/180, 96/180, 100/180, 18/30, 20/30 16APSK: 26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180 4_12_16rb_APSK: 2/3 4_8_4_16_APSK: 128/180, 132/180, 140/180 |
|
| Power consumption | |
| Input/ Power: | 5V/5W |
| temperature | 0~60℃ |
Other information:
| System Requirements | Windows XP / Vista/ 7/8/10, Linux |
| AvailableUSB 2.0 slot | |
| Digital TV signal (ISDB-T/DVB-T2/C2/S2X/S2/T/C/S) | |
| Dimension: | |
| TV tuner box size | 9*7.5*2.5(cm) |
| Net weight | 110g |
| Gift Box Size | 17*16.5*8.5(cm) |
| Weight | 350g |

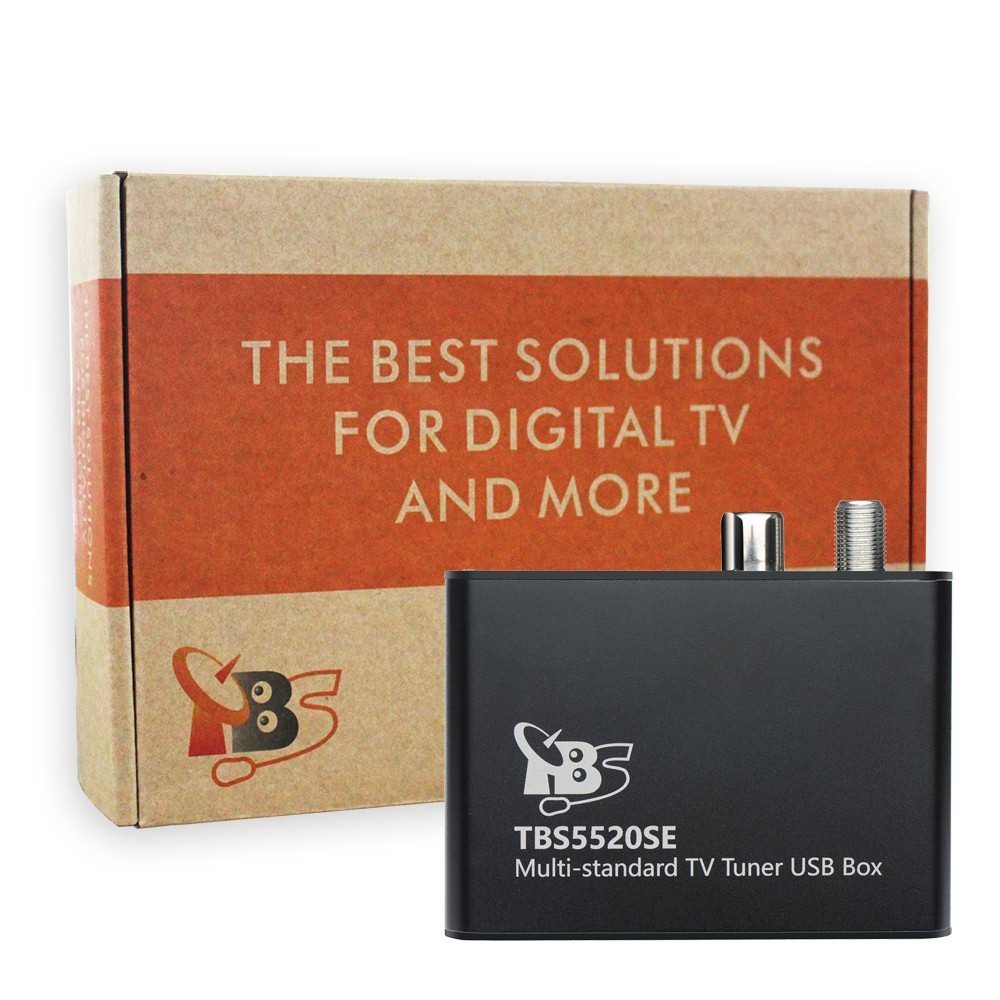

| Package Contents | 1 x TBS5520SE |
| 1 x USB cable | |
| 1 x F-IEC | |
