TBS6814 ISDB-T Quad Tuner PCIe Card

Special Order – Contact Us for info

SKU: TBS6814 Category:

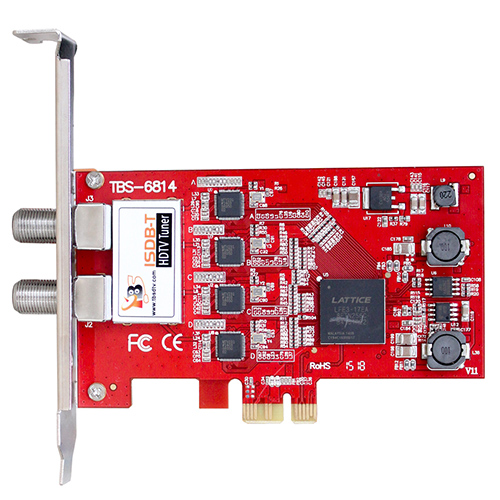

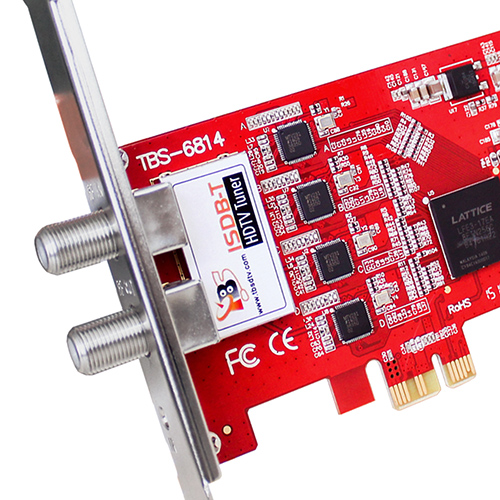

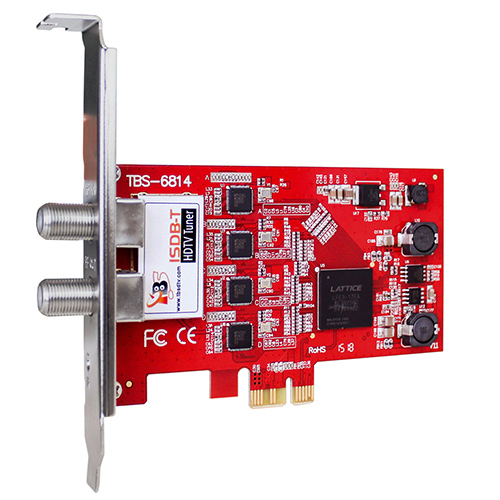

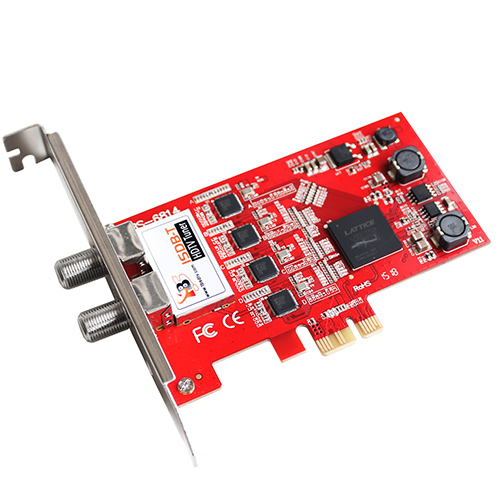

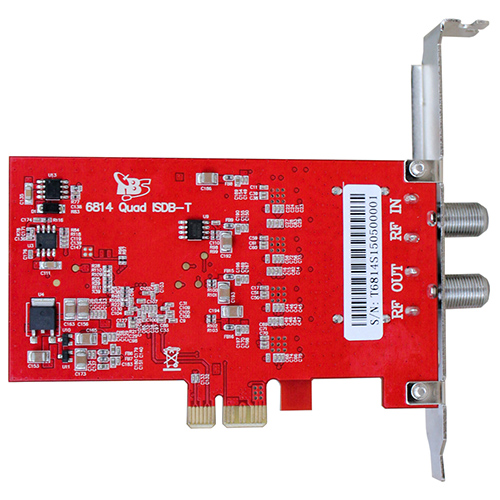

TBS6814 is an internal ISDB-T quad tuner PCIe(PCI-Express) card for receiving SBTVD TV and digital terrestrial TV channels on desktop PC. With four advanced ISDB-T tuners, TBS6814 allows you to receive four channels simultaneously, you can watch one channel while recording three other channels. TBS6814 can be used for IPTV streaming server, it is the best choice for you to build a superior broadcasting system.

Low profile design, ideal for small server
Fully ISDB-T (full seg & 1seg) compliant, perfect for Brazil SBTVD and Japan ISDB-T
Quad ISDB-T tuner for 4 SD/ HD channels reception simultaneously
High-definition video, time-shift live TV and scheduled recording support
MPEG2 TSIF of TS data and support multi-TS output mode
Windows and Linux driver support

Input frequency
VHF-L: 78MHz to 108MHz
VHF-H: 174MHz to 245MHz
UHF: 470MHz to 860MHz
Bandwidth: 6 MHz, 7MHz, 8MHz
Audio coding: MPEG-2 Audio (AAC)
Video coding: MPEG-2 Video, AVC (H.264)

System Requirements
Windows 2000/XP/Vista/7/8/10 or Linux
CD/DVD drive for software installation
Available PCI Express x1, x4, x8 or x16 slot

ISDB-T receiver/ server
Digital broadcasting
IPTV streaming

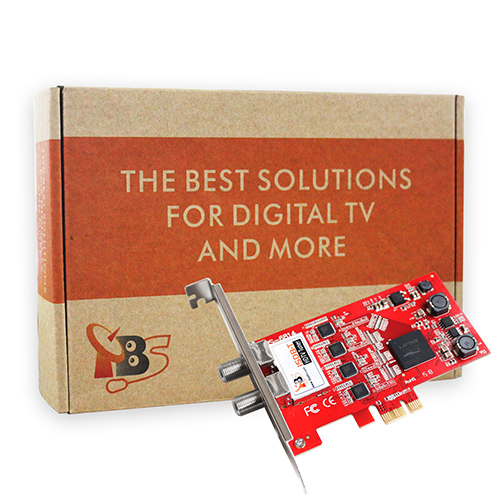

Package Contents
1 x TBS6814
1 x Low profile bracket
1 x F connector
